Malleable Iron Pipe Clamps

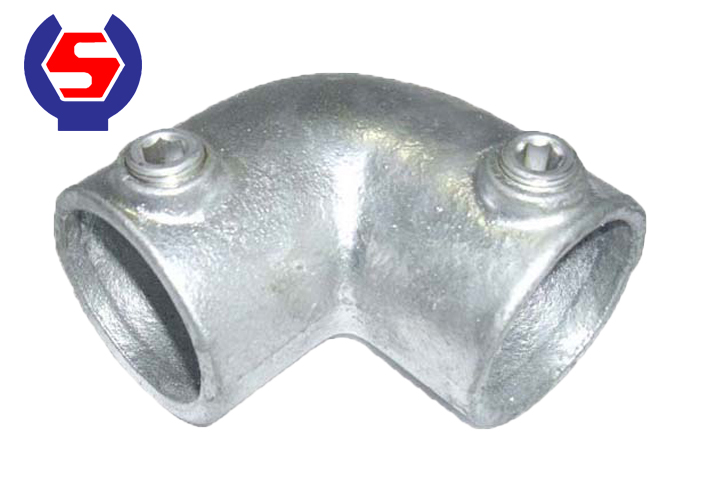

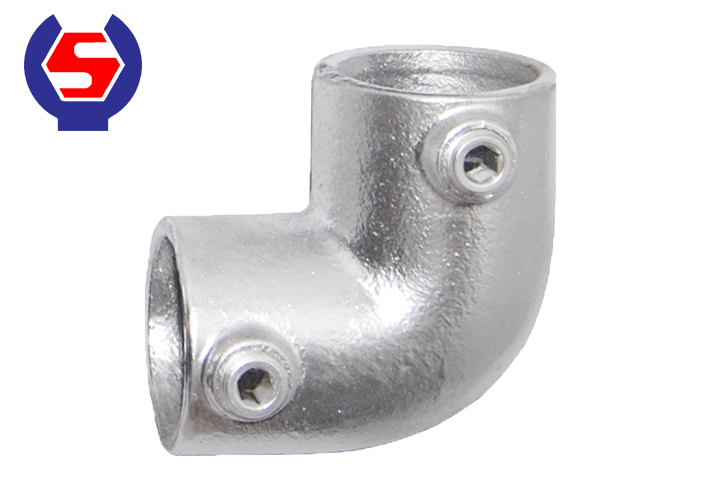

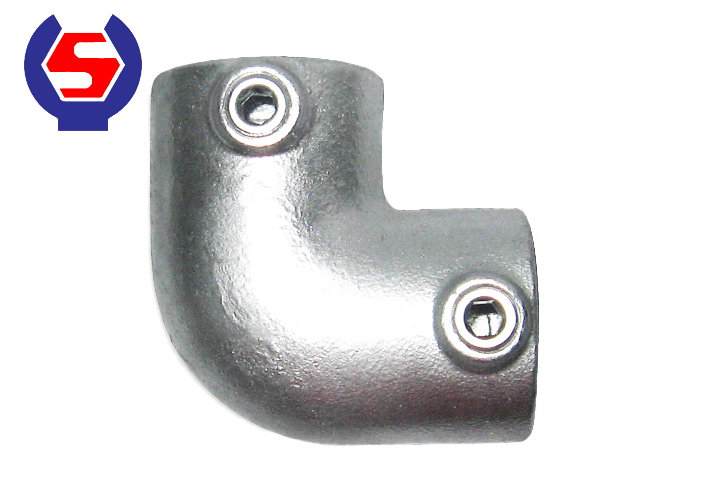

Type 125 90° Elbow
90° angle joint, often used where top rail meets end upright on level sites.
|Body Material Standard||Malleable Iron, meet standard ASTM A197|
|Screw||Stainless and Carbon Steel|
|Size Available||AA to E (OD size 27-60 MM)|
|Surface Treatment||Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated|
|Pipe Clamp Size||Nominal Bore||Outside Diameter|
Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
Powder Coat finishes to standard RAL colors are available on request.
