Product Name: 116 Three Ways Through

Share
Specification:

Malleable Iron Pipe Clamps

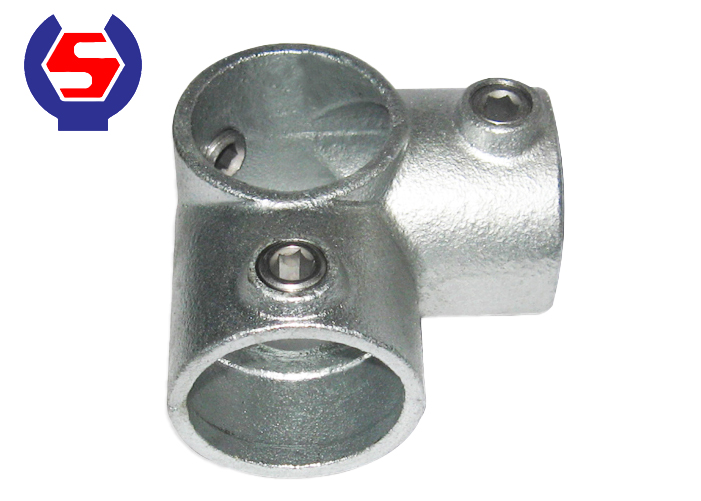

Type 116 Three ways through

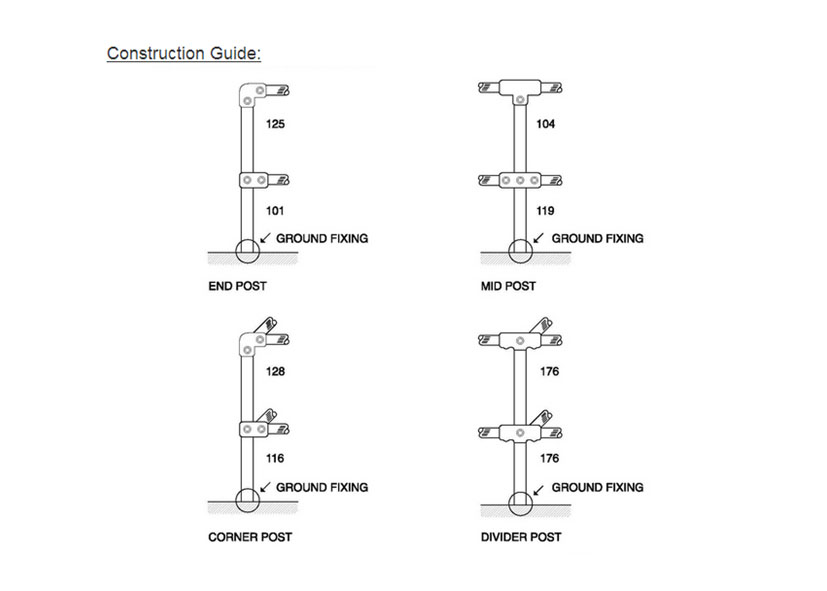

90° corner joint, often used on middle rail on level sites and often paired with type 128. The through tube (vertical) cannot be joined within the fitting.

Body Material StandardMalleable Iron, meet standard ASTM A197
ScrewStainless and Carbon Steel
Tensile Strength>=350Mpa
Elongation>=10%
HardnessHB<=150
Size AvailableAA to E (OD size 27-60 MM)
Surface TreatmentHot Dipped Galvanized, Black, Zinc Plated & Powder Coated
Pipe Clamp SizeNominal BoreOutside Diameter
AA211/2’’21.3mm
A273/4’’26.9mm
B341’’33.7mm
C421-1/4’’42.4mm
D481-1/2’’48.3mm
E602’’60.3mm


Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.

116 Three Ways Through

116 Three Ways Through

Advantage:

116 Three Ways Through

Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.


116 Three Ways Through

Powder Coat finishes to standard RAL colors are available on request.

116 Three Ways Through
