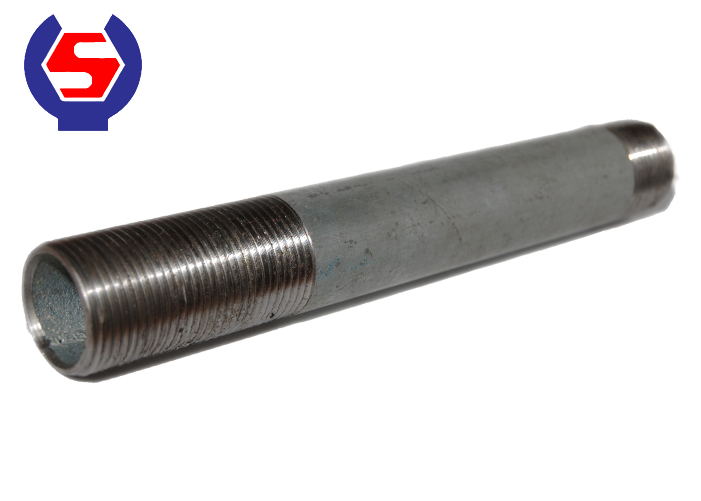

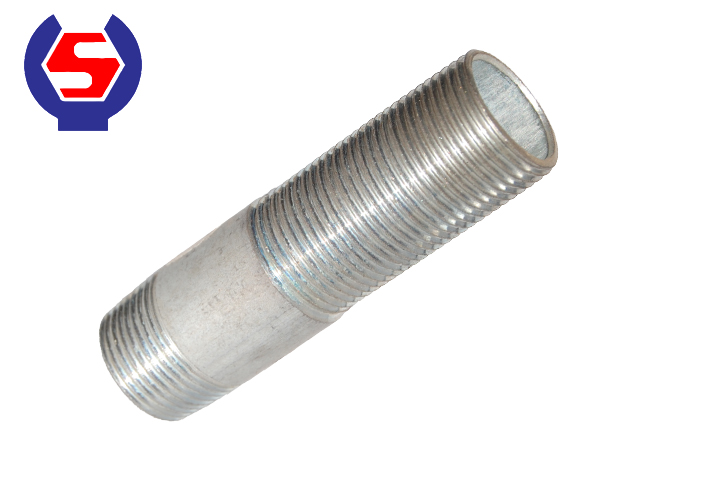

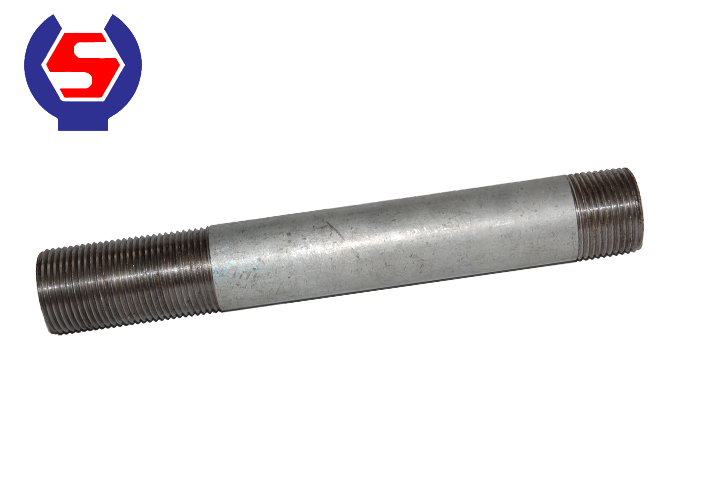

| STEEL PIPE NIPPLES LONG SCREW - TANK TYPE | |||||||
| SIZE | inch | 1/2" x 6" x 102 | 3/4" x 6" x 102 | 1" x 6" x 102 | 1-1/4" x 6" x 102 | 1-1/2" x 6" x 102 | 2" x 6" x 102 |
| DIAMETER | mm | 21.3 | 26.7 | 33.4 | 42.2 | 48.3 | 60.3 |
| LENGTH | mm | 152.4 | 152.4 | 152.4 | 152.4 | 152.4 | 152.4 |
| NOTE: | |||||||
| STANDARD: BS EN10241, ASTM A733, DIN2982 | |||||||
| MATERIAL: ASTM A106, A53; ST33, ST45-8, Q195, 20# | |||||||
| THREAD: BSPT, NPT, DIN (ISO7/1, DIN 2999, ANSI B1.20.1) | |||||||
| THE LENGTH AND SIZES CAN BE MADE AS PER CUSTOMER'S REQUEST. | |||||||
| THIS TYPE OF NIPPLE CAN BE MATCHED WITH SOCKETS AND BACK NUTS. | |||||||
