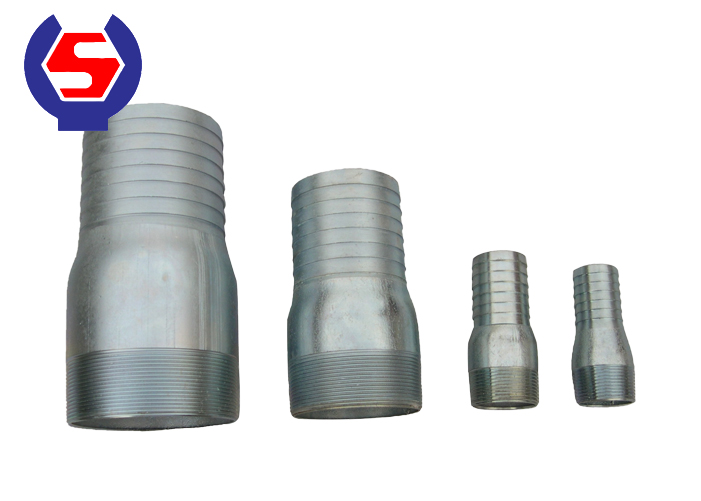

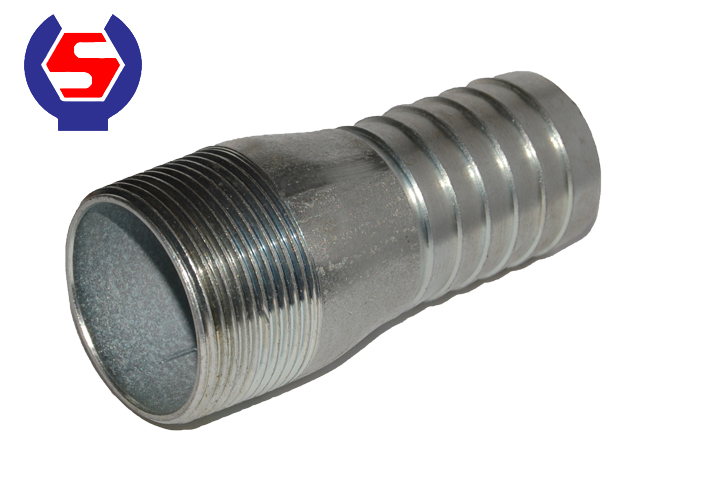

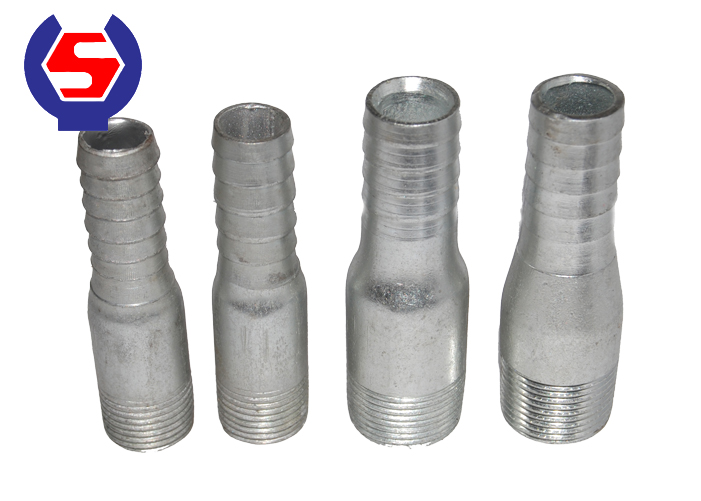

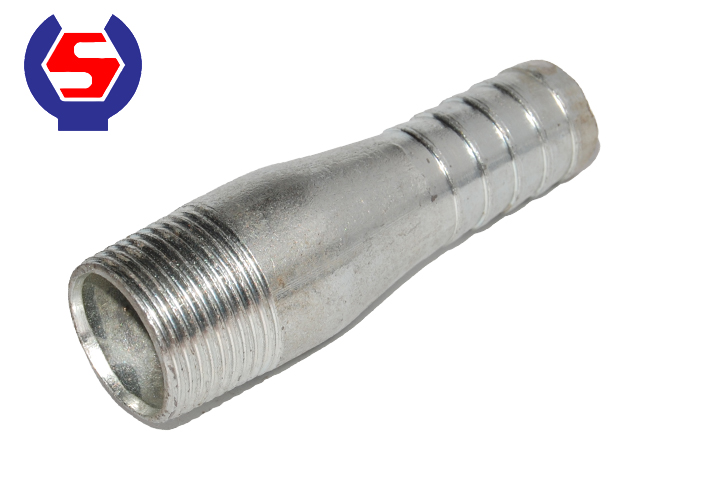

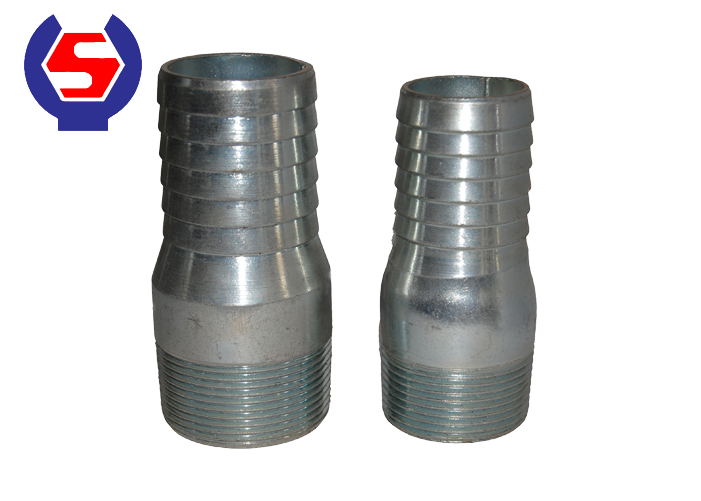

King Combination Nipples
Product: King Nipples or King Combination Nipples.
Features:
1) Material: ERW steel pipes or seamless steel pipes
2) Surface: Hot-dipped galvanized or electrical galvanized
3) One end with barbs and another end with thread, all threads are made according to BSPP, BSPT or NPT thread.
4) Used for connection of female thread and hoses.
4) Size available from 1/2" to 6"
| KING NIPPLES AND HOSE MENDER | |||||||||||||
| SIZE | inch | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" |
| THREAD DIAMETER | mm | 21 | 27 | 32 | 42 | 48 | 60 | 76 | 89 | 114 | 140 | 165 | 219 |
| HOSE END DIAMETER | mm | 13.5 | 20 | 26 | 32.5 | 39 | 52 | 64.5 | 77 | 103 | 128 | 153 | 204 |
| NOTE: | |||||||||||||
| STANDARD: BS EN10241, ASTM A733, DIN2982 | |||||||||||||
| MATERIAL: ASTM A106, A53; ST33, ST45-8, Q195, 20# | |||||||||||||
| THREAD: BSPT, NPT, DIN (ISO7/1, DIN 2999, ANSI B1.20.1) | |||||||||||||
| LENGTH AND OTHER SIZES ARE MADE AS PER CUSTOMER'S REQUEST. | |||||||||||||
