Product Name: 342 Union Female Conical Joint ,Brass To Iron Seat

Share
Specification:


Malleable Iron Pipe Fittings

FIG NO. 342 Union Female Conical Brass To Iron

Material

Black heart malleable iron

Surface Treatment

a. Black (as cast)


b. Galvanized (hot dip zinc coating)


c. Epoxy painting (250-300 Microns)

DIN Standard

(According to EN10242)

Exported to many European countries


Materials: DIN1692


Dimensions:DIN2950,EN10242,ISO49


Threads: DIN2999

American Standard

Export to North and South American countries


Materials: ANSI/ASME A197-79


Dimensions:ANSI/ASME B16.3-85


Threads: ANSI/ASME B1.20.1



British Standard

Export to Middle East countries


Dimensions: BS EN 10242, BS 143&1256


Threads: ISO 7/1

ABNT 6943 Standard

Export to Brazil

Chemical property

(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),
(P% <0.1), (S% <0.2%)

Mechanical Properties

Tensile Strength: ≥ 33kg/mm²


Elongation Rate: ≥ 8%


Hardness: ≤ HB150

Hydrostatic Test

Test Pressure: 25kg/cm²,100% test before shipment


Working Pressure: 16kg/cm²

Type

Banded without ribs,Beaded with ribs,Beaded without ribs

Series

Heavy, standard, medium, light

Certificate

BSI, ANAB, ISO9001,FM,UL

Applications

Suitable for Pipe lines connect of steam, air, gas, oil

and so on

Buyer’s drawings or designs are available

Package

1.Cartons without pallets


2. Cartons with pallets


3. Double woven bags Or as buyer’s requirements

Delivery detail

According to the quantities and specifications of each order


According to the quantities and specifications of each order

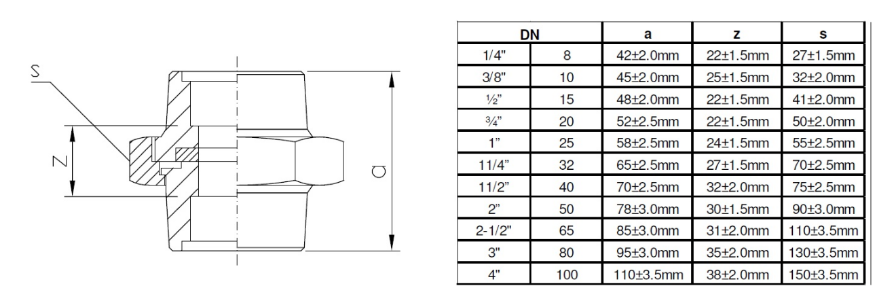

Product details:
342 Union Female Conical Joint ,Brass To Iron Seat
342 Union Female Conical Joint ,Brass To Iron Seat
