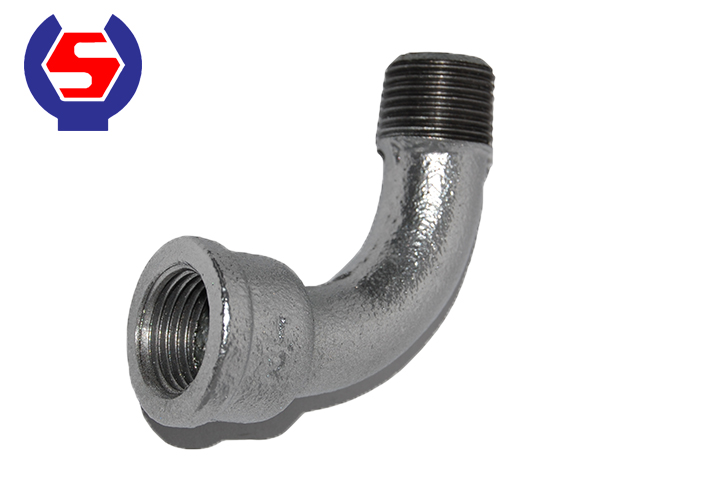

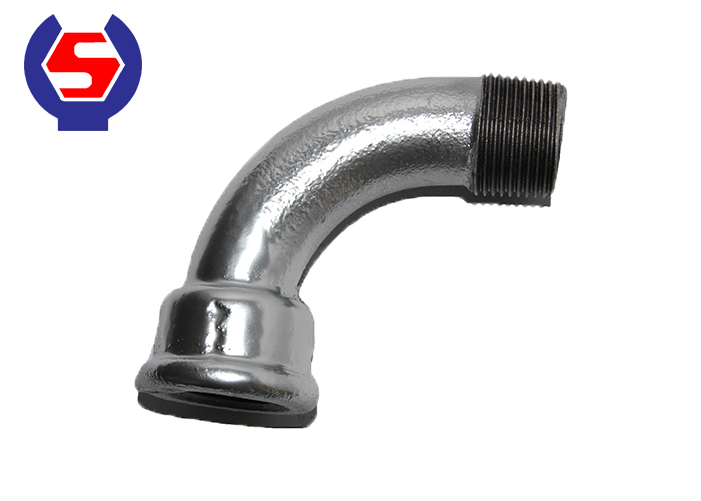

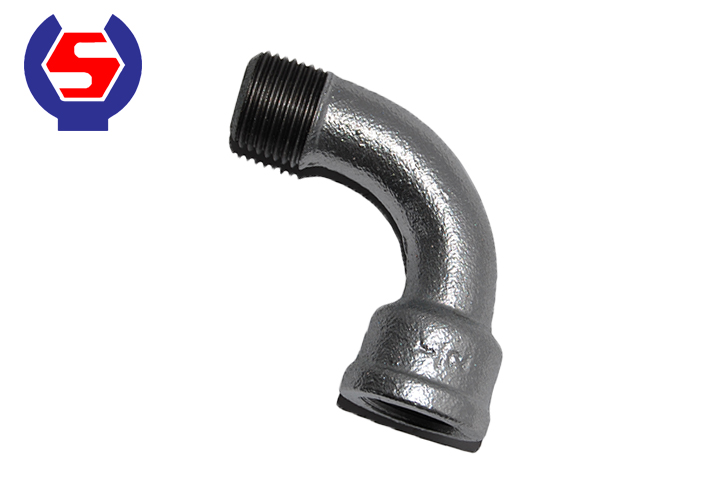

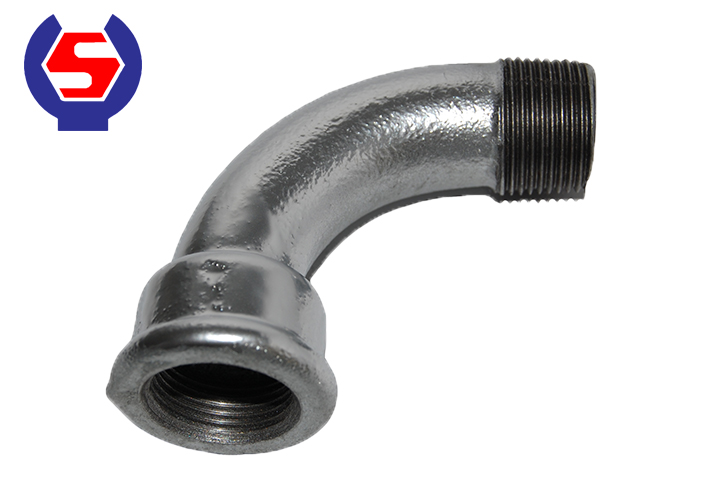

Product Name: 1# Bends M&F 90°

Share
Specification:

Malleable Iron Pipe Fittings

FIG NO. 1# Bend 90°Male and Female

MaterialBlack heart malleable iron
Surface Treatmenta. Black (as cast)
b. Galvanized (hot dip zinc coating)
c. Epoxy painting (250-300 Microns)
DIN Standard(According to EN10242)Exported to many European countries
Materials: DIN1692
Dimensions:DIN2950,EN10242,ISO49
Threads: DIN2999
American StandardExport to North and South American countries
Materials: ANSI/ASME A197-79
Dimensions:ANSI/ASME B16.3-85
Threads: ANSI/ASME B1.20.1
British StandardExport to Middle East countries
Dimensions: BS EN 10242, BS 143&1256
Threads: ISO 7/1
ABNT 6943 StandardExport to Brazil
Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),
(P% <0.1), (S% <0.2%)
Mechanical PropertiesTensile Strength: ≥ 33kg/mm²
Elongation Rate: ≥ 8%
Hardness: ≤ HB150
Hydrostatic TestTest Pressure: 25kg/cm²,100% test before shipment

Working Pressure: 16kg/cm²
TypeBanded without ribs,Beaded with ribs,Beaded without ribs
SeriesHeavy, standard, medium, light
CertificateBSI, ANAB, ISO9001,FM,UL
ApplicationsSuitable for Pipe lines connect of steam, air, gas, oil and so on
Buyer's drawings or designs are available
Package1.Cartons without pallets
2. Cartons with pallets
3. Double woven bags Or as buyer's requirements
Delivery detailAccording to the quantities and specifications of each order
According to the quantities and specifications of each order


1# Bends M&F 90°

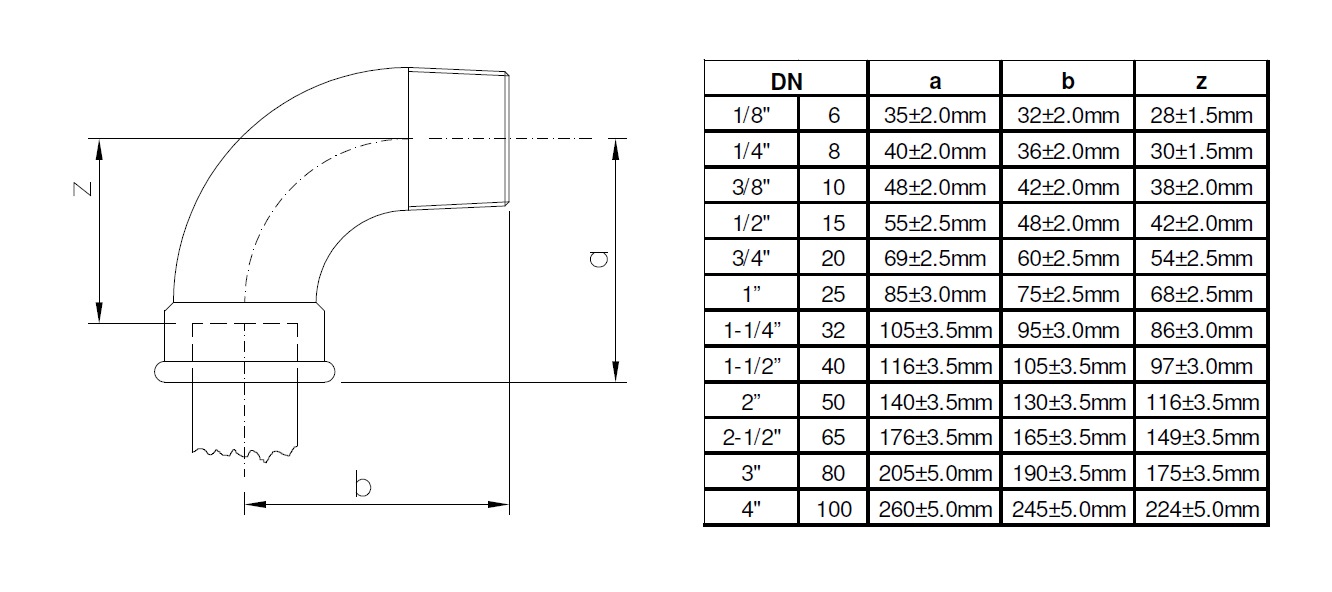

Product details:
1# Bends M&F 90°
1# Bends M&F 90°
