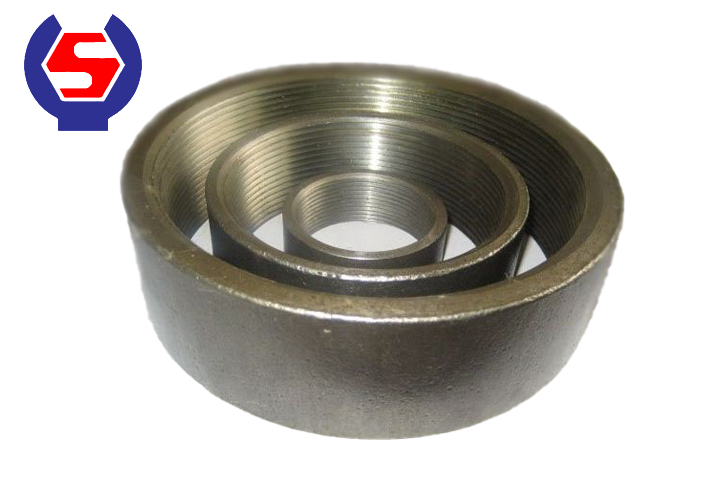

STEEL SOCKETS/MERCHANT COUPLING
Product: steel sockets/steel merchant coupling
Place of Origin: China
Features:
1) Material: seamless steel pipes

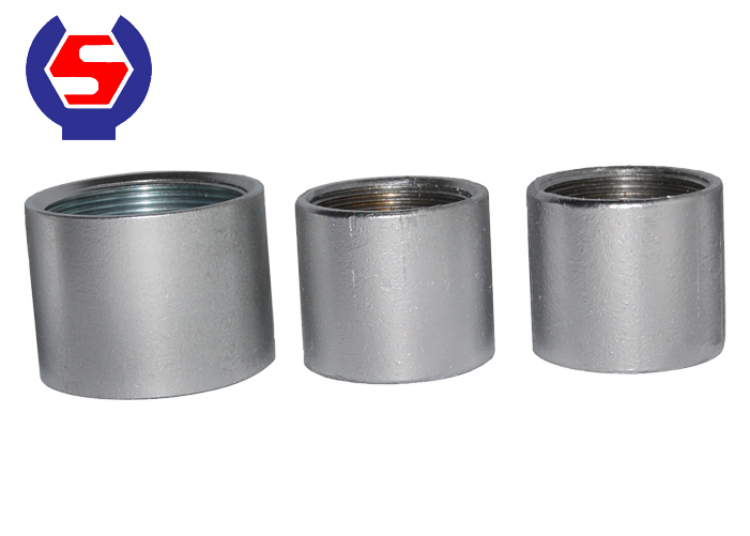

2) Hot-dipped galvanized or electrical galvanized and black, also Powder coating as customer’s request.
3) Sockets are available in full sockets, half sockets and Special sockets. Customers’ drawings or designs are available.
4) Standard according to BS EN10241, ASTM A 865, DIN 2986, the thread refers to internal parallel thread.
5) Size available from 1/8" to 6"
BSEN 10241:2000 SOCKET (COUPLING) AND HALF SOCKET, TYPE HEAVY | ||||
TYPE OF SOCKET | OUTSIDE DIAMTER(MIN) | LENGTH(MM) | ||
INCH | MM | MM | FULL SOCKET | HALF SOCKET |
1/4" | 8 | 18.5 | 27 | 11 |
3/8" | 10 | 22.0 | 28 | 12 |
1/2" | 15 | 27.0 | 37 | 16 |
3/4" | 20 | 32.5 | 39 | 19 |
1" | 25 | 39.5 | 46 | 21 |
1-1/4" | 32 | 49.0 | 51 | 25 |
1-1/2" | 40 | 56.0 | 51 | 25 |
2" | 50 | 68.0 | 60 | 28 |
2-1/2" | 65 | 84.0 | 69 | 30 |
3" | 80 | 98.0 | 75 | 35 |
4" | 100 | 124.0 | 87 | 40 |
5" | 125 | 151.0 | 96 | 44 |
6" | 150 | 177.0 | 96 | 44 |
