  • Air Hose Coupling (claw coupling) Chicago Coupling 1-1

Product Name: Air Hose Coupling (claw coupling) Chicago Coupling 1-1

Share
Specification:
Air Hose Coupling (claw coupling) Chicago Coupling
Max working pressurePN 10 bar
Temperature–40°C/+95°C
MaterialMalleable Iron Or Carton Steel
MediumCompressed Air
Claw distance42mm
NormDIN3489(European Type)and US Type

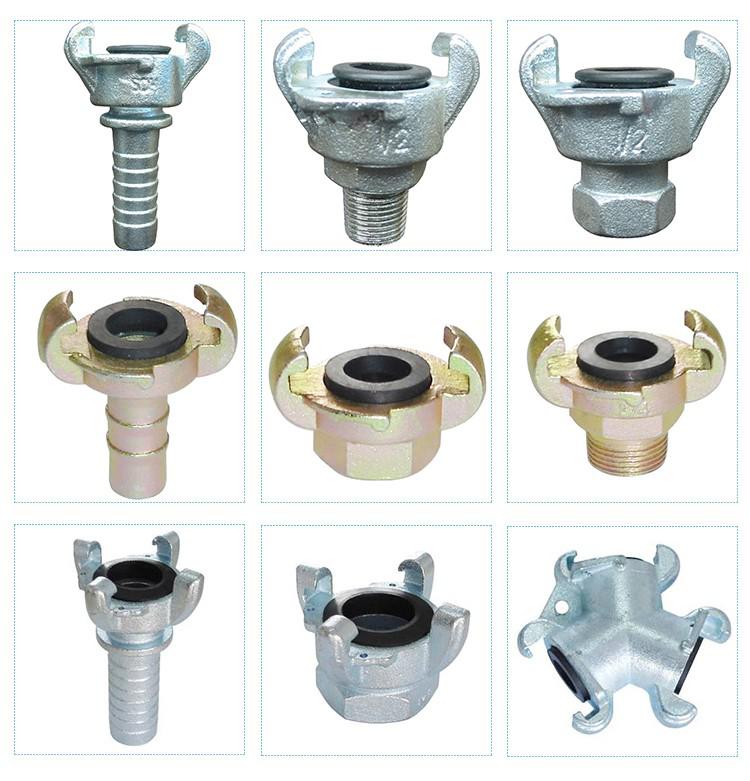

TypeHose End, Female, Male
Size1/4”—1” Two Lugs  1-1/4"-2" Four Lugs

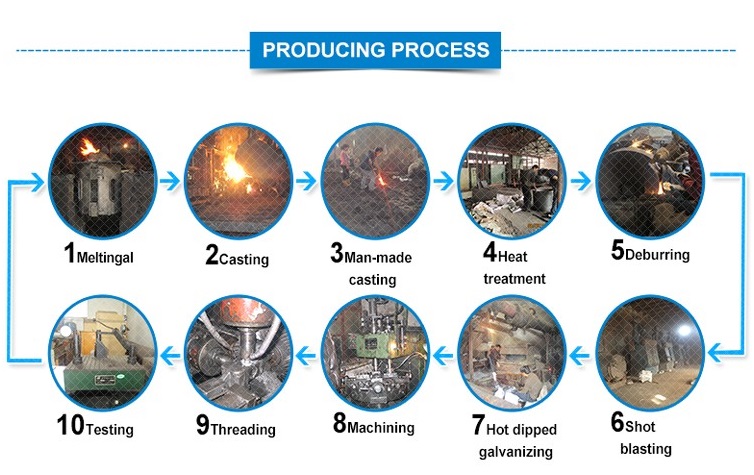

Casting methodInvestment casting, Sand casting
SealingNBR
Tread typeBSP or NPT

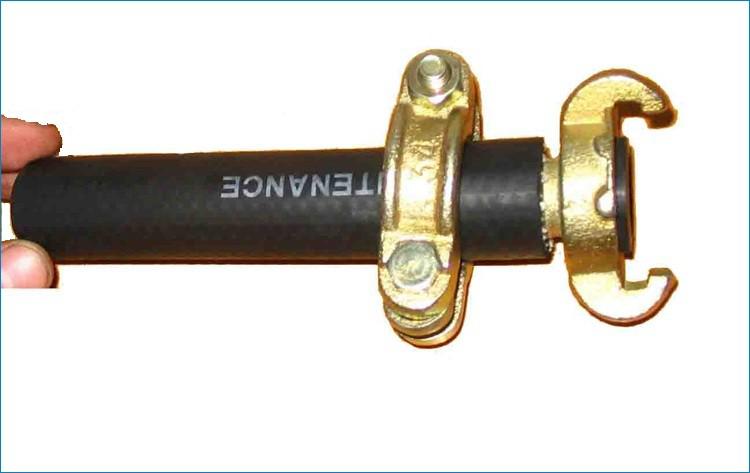

PartsMale endFemale endHose end without collarHose end with collar
1/4"-1" Two Lugs 1-1/4”—2” Four Lugs
Easy male thread sealing with PVC-Packing rings type HPD


Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling 1-1

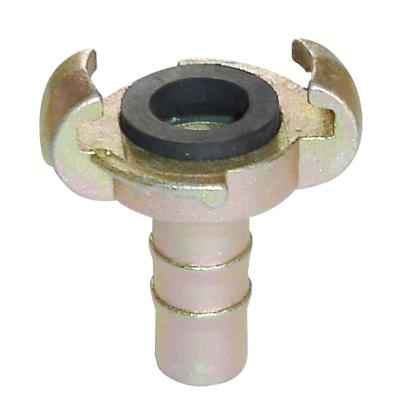

• Robust couplings of malleable iron, zinc plated and yellow passivated


• 100 % couple test and sight control


• With oil-resistant rubber ring


• Universal coupling, world-wide used system for compressed air in

construction and industry


Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling


Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling
