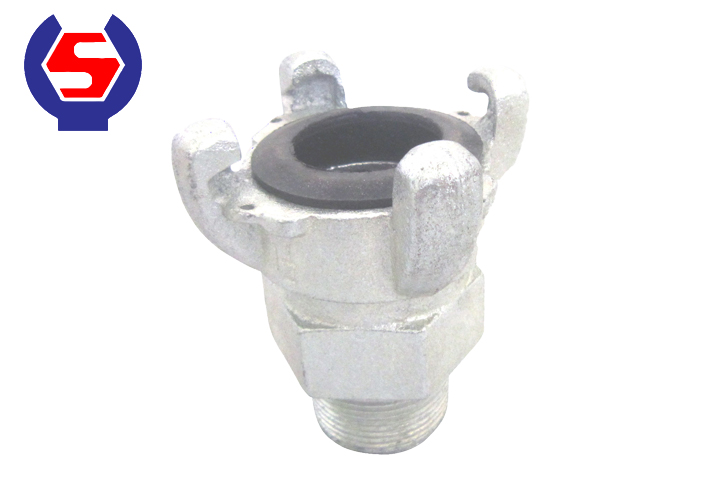

  • Air Hose Coupling (claw coupling) Chicago Coupling 4-1

Product Name: Air Hose Coupling (claw coupling) Chicago Coupling 4-1

Share
Specification:


Air Hose Coupling (claw coupling) Chicago Coupling

Max working pressure

PN 10 bar

Temperature

–40°C/+95°C

Material

Malleable Iron Or Carton Steel

Medium

Compressed Air

Claw distance

42mm

Norm

DIN3489(European Type)and US Type

Type

Hose End, Female, Male

Size

1/4”—1” Two Lugs  1-1/4"-2" Four Lugs

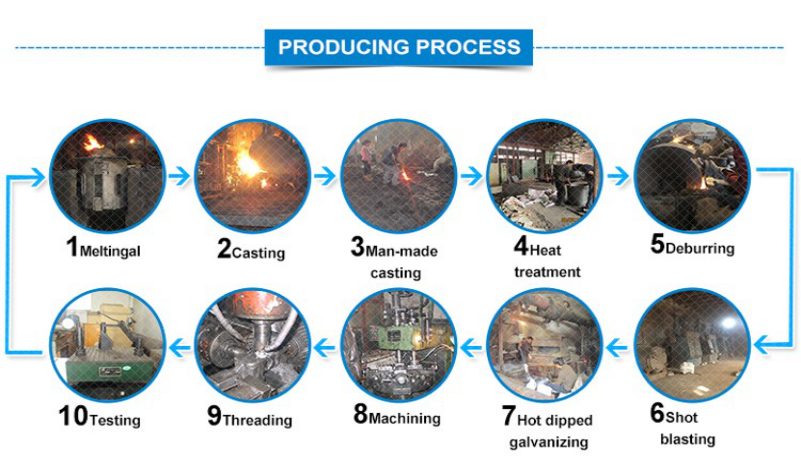

Casting method

Investment casting, Sand casting

Sealing

NBR

Tread type

BSP or NPT

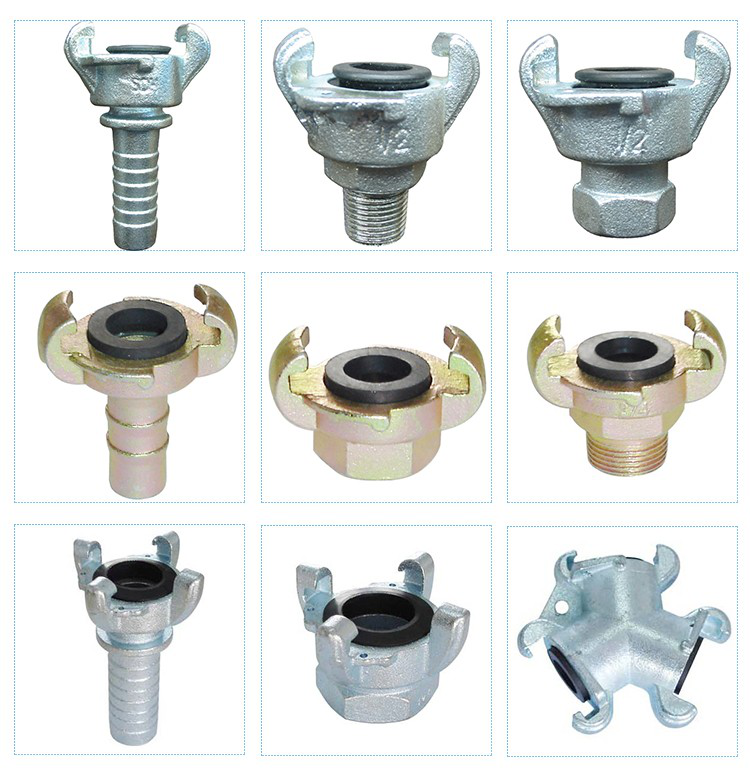

Parts

Male end

Female end

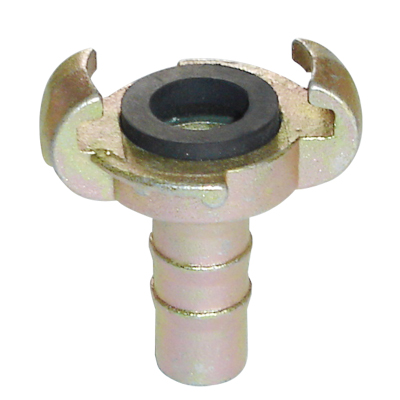

Hose end without collar

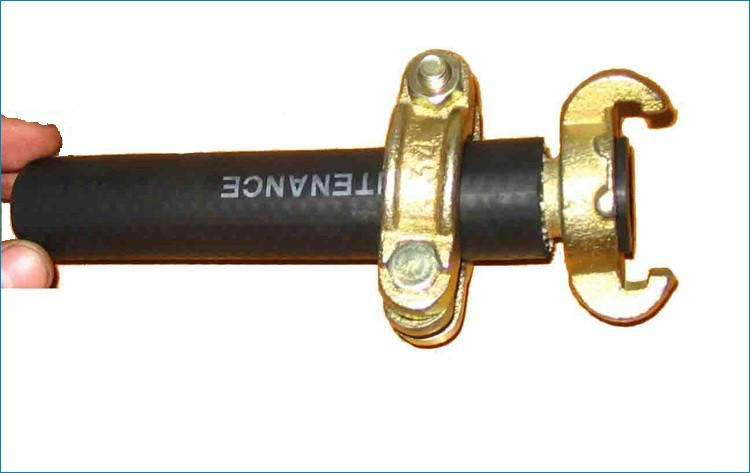

Hose end with collar

1/4"-1" Two Lugs 1-1/4”—2” Four Lugs

Easy male thread sealing with PVC-Packing rings type HPD



• Robust couplings of malleable iron, zinc plated and yellow passivated



• 100 % couple test and sight control



• With oil-resistant rubber ring



• Universal coupling, world-wide used system for compressed air in construction and industry
