  • Air Hose Coupling (claw coupling) Chicago Coupling 2-1

Product Name: Air Hose Coupling (claw coupling) Chicago Coupling 2-1

Share
Specification:
Air Hose Coupling (claw coupling) Chicago Coupling
Max working pressurePN 10 bar
Temperature–40°C/+95°C
MaterialMalleable Iron Or Carton Steel
MediumCompressed Air
Claw distance42mm
NormDIN3489(European Type)and US Type
TypeHose End, Female, Male
Size1/4”—1” Two Lugs  1-1/4"-2" Four Lugs
Casting methodInvestment casting, Sand casting
SealingNBR
Tread typeBSP or NPT

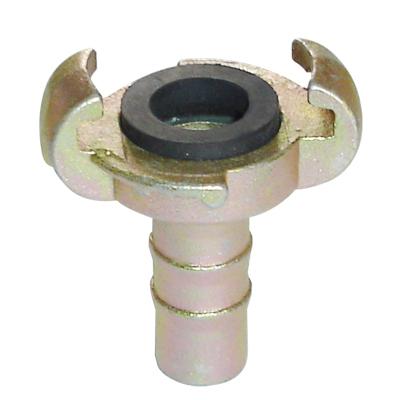

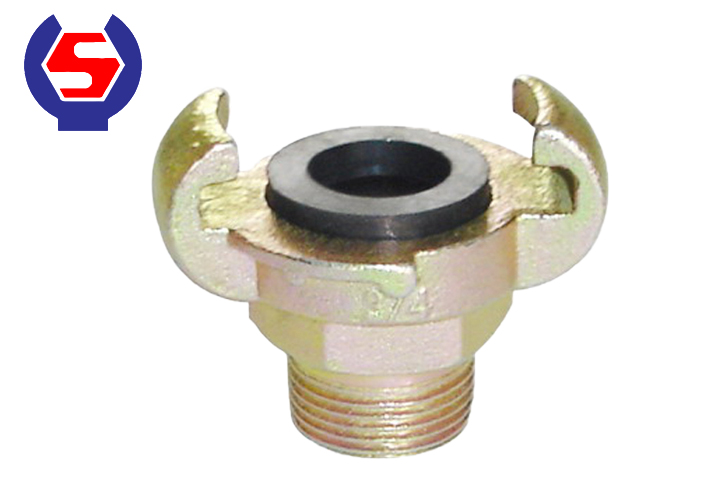

PartsMale endFemale endHose end without collarHose end with collar
1/4"-1" Two Lugs 1-1/4”—2” Four Lugs
Easy male thread sealing with PVC-Packing rings type HPD


Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling 2-1

• Robust couplings of malleable iron, zinc plated and yellow passivated



• 100 % couple test and sight control



• With oil-resistant rubber ring



• Universal coupling, world-wide used system for compressed air in construction and industry


Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling


Product details:
Air Hose Coupling (claw coupling) Chicago Coupling 2-1

Air Hose Coupling (claw coupling) Chicago Coupling

Air Hose Coupling (claw coupling) Chicago Coupling
